After two decades, COEXCELL is recognized as the preeminent innovator in producing uniquely engineered, multi-layer HDPE plastic molded drums. The N55 nestable drum is the most rugged, reusable drum on the market.  One way to determine if Coexcell drums are for your operation is to do the financial analysis.

This drum is a mainstay of the fruit and juice business.  Many processors charge a monetary deposit on the drums to ensure they get the drums back for the next season.  The nestability of the drum allows for a cost effective return trip vs. steel drums.


Cost of Ownership

N55 HDPE vs. steel drums.

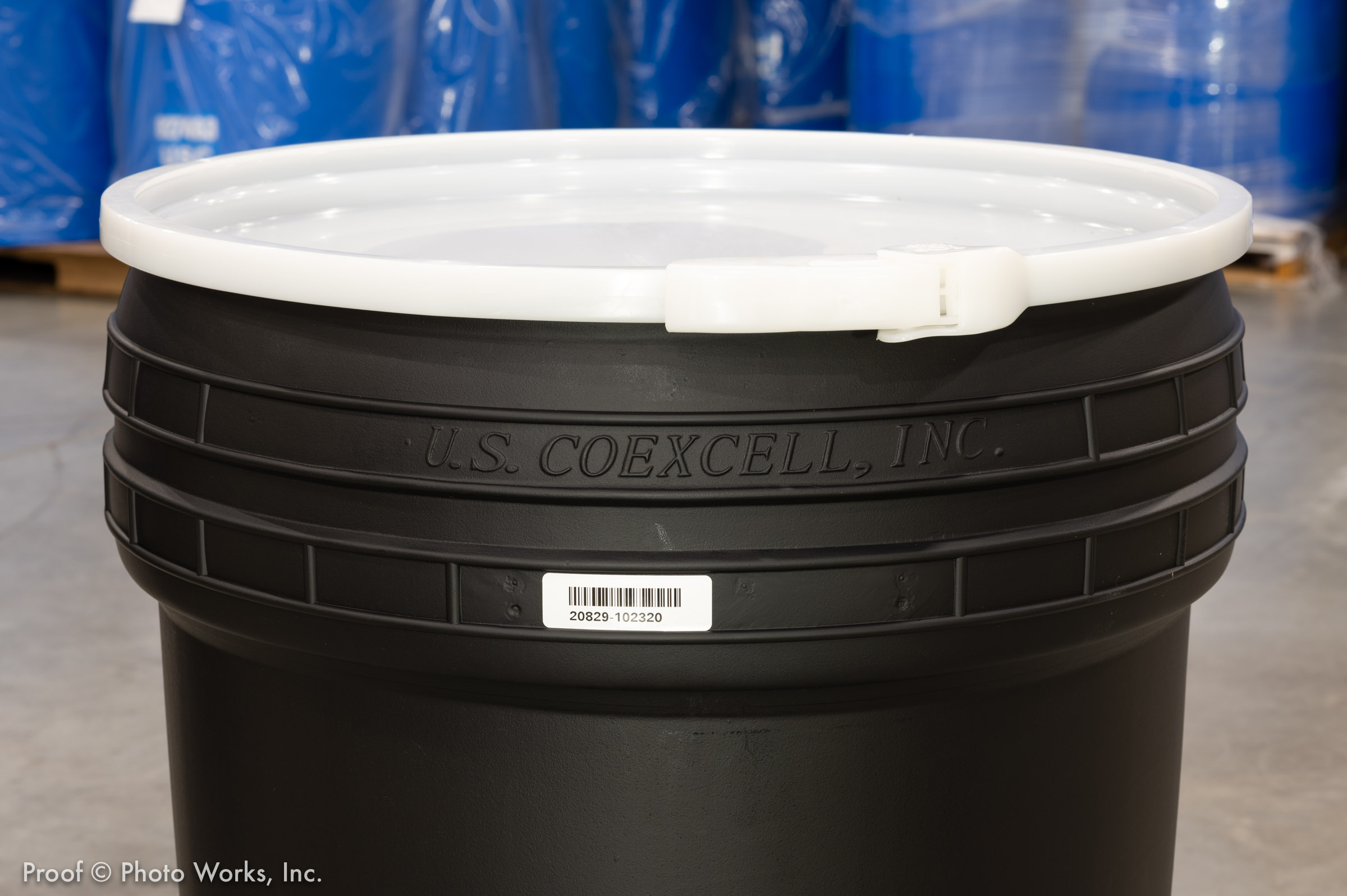

Coexcell blow molds the most rugged 55 gallon nestable Open Head drum on the market. This drum takes the abuse given out in a mechanized food manufacturing plant with forklifts running about and then some. Our regular customers tell us the N55 lasts 3-4 times or longer than a steel drum – which means that many years of service giving you an outstandingly low cost of ownership and a tremendous return on your investment.

We encourage you to calculate and compare your cost of ownership vs steel drums

(drum cost $_______) ÷  (drum life in years_______) = cost per year $____________

Our example:
(Steel drum cost ($ 36 )  (steel drum life in years   (3) = cost per year $ 12 per year
(N55 drum cost  ($ 44 ) ÷ (N55 drum life in years    (9)  which is 3x the life of steel) = cost per year $ 4.89 per year.

Now multiply the cost of ownership difference by the number of reusable drums bought and,  Yes N55 nestable drums save big money over time.

Now calculate the hidden ongoing cost of transporting empty drums.
Take your transportation costs of per trip. For example $500.
Approx 208 empty drums fit on a 53’ trailer. Over 3 times (736) fit on a 53ft. trailer. So to transport 624 steel drums the costs are $1500, while the cost is $500 for N55 drums.

Additionally, how does your customer perceive the value of your product in a more sanitary, professional looking container (no rust, no dents)?  That answer is in the years they are your customer.

The Coexcell N55 drum has been recently improved. This drum is now of a tri-layer construction that allows for an exterior layer of any color with UV inhibitor (black and blue are the standard and stocked colors), a recycled HDPE middle layer which is our own internally created pulverized scrap, and a white virgin inner layer for easy cleanliness inspection. The drum is made of FDA compliant resin.

The N55 offers safe, hygienic packaging for food processing and storage. The drum’s lightweight, conical design conveniently allows them to stack for increased warehouse efficiency and space. Preventing corrosion and denting, the plastic construction also allows for outside storage and additional space savings. Our customers have told us time and again, this drum lasts on average 3-4 times longer than metal drums, your savings begin with your first N55 Drum purchase.

VALUE-ADDED BENEFITS:

  • Body sidewall contains pigment and UV stabilizers to offer maximum protection from the sun
  • Lighter weight – about half as heavy as steel drums, allowing for greater payloads
  • The conical shape allows empty drums to be nested allowing warehouse efficiency to be improved by up to 75%
  • The white inner liner layer allows for easier inspection during the cleaning process.
  • A long life cycle means the N55 will long outlast their steel counterparts, providing many more trip cycles
  • The patented molded strapping channel allows proper restraint while the drum is on the pallet and during shipments (Banding of drums on pallet is recommended for increased stability)
  • Designed to be easily handled with conventional drum handling equipment
  • Consistent container dimensions which eliminates “sorting” of steel drums

N55 SPECIFICATIONS

Body Height

37.5” (95.3cm)

Top diameter

23.2” (58.9cm)

De-nesting height

7.4” (19cm)

Min Wall Thickness

.125” (.32 cm)

Total weight

17.0 lbs. (± 0.5 lbs.) / 7.70 kg (± 0.23 kg)

Max Capacity

55 gal (208 liters)

Color

Black (Other colors available upon special request)

FURTHER INFORMATION:

  •  Broad temperature operating range:
    -40°F to 140°F (-40°C to 60°C)
  • Deflection point: 149°F to 160°F (65°C to 71°C)
  • Approximately 736 nested Drums including lids and lock bands fill a standard 53’ trailer
  • Approximately 536 nested Drums including lids and lock bands fill a 40’ high storage cube container.”





  • Molded-in  strapping channel allows for proper restraint while the drum is filled and on the pallet to be stacked as well as during shipment







  • Gripping spot for forklift attachment to move filled drums inside the plant











  • A warehouse footprint of 4′ wide x 8′ long x 24′ high totaling 768 square feet will hold either 64 straigth sided drums as shown on the left OR 192 nestable drums as shown on the right.







  • Coexcell offers two methods to help identify your N55  drums to help ensure they make they don’t get “lost” on the return.
    • First, have your name embossed into the drum at the time of manufacture.
    • Second,  have them blow molded in a identifying color
