After two decades, COEXCELL is recognized as the preeminent innovator in producing uniquely engineered, multi-layer HDPE plastic molded drums. To enhance our offering of the N55 nestable drum, Coexcell also offers the N55 Pallet – 4 Drum.  The thermoformed HDPE pallet is made specifically to hold Coexcell N55 nestable drums and allow our customers better product handling. If you are building a new plant and want to do it right the first time, then this pallet is for you.

COEXCELL’s newest innovation, the N55 Pallet optimizes storage and handling in the food packaging industry. Designed specifically to fit the N55 Drum, the N55 Pallet provides added balance and stability during shipping. The unique design allows N55 drums to nest neatly in the pallet, but also allows for steady stacking.

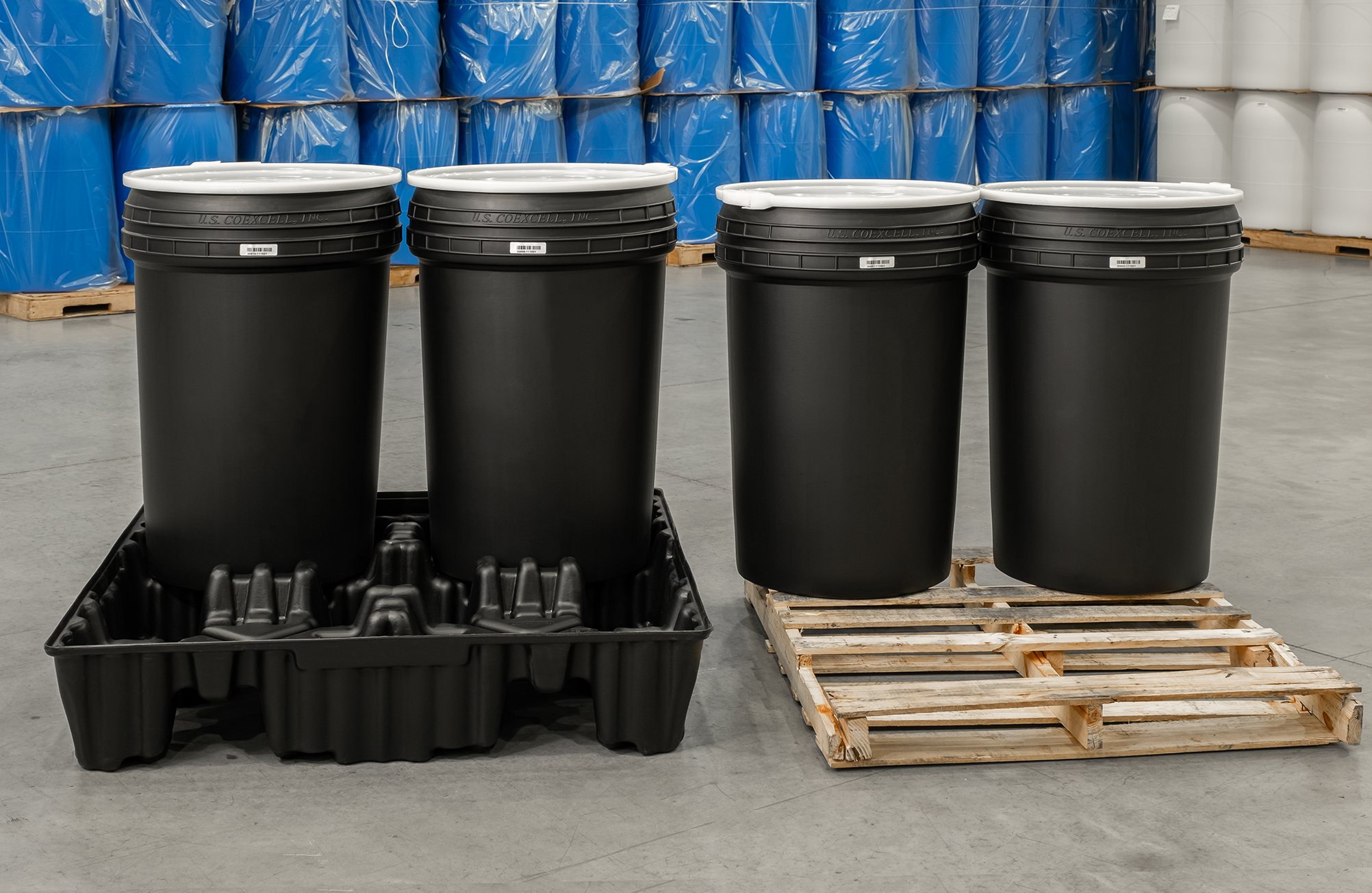

The N55 Pallet’s plastic construction provides added strength and doesn’t crack or break under pressure. Less permeable to bacteria than wood pallets, the plastic material provides not only increased durability but also safety. Ideal for a food-processing environment High Density Polyethylene (HDPE), resin and is the perfect accompaniment to the N55 drum.

VALUE-ADDED BENEFITS:

  • Plastic construction extends the product’s life and number of uses
  • Wide forklift openings provide the optimum distance for trouble-free moving and transport of the pallets
  • Built-in weep-holes allow for water drainage as frozen product thaws and prevent the accumulation of water when pallets are stored outdoors

  • When not in use, pallets interlock and nest inside each other and save up to 40% in warehouse space
  • 50% lighter than wood pallets, the N55 improves efficiency and saves on labor
  • The pallet secures the drum on the bottom and the top when a pallet is stacked on top of it.

N55 SPECIFICATIONS

Dimensions

48” x 48” (123cm x 123cm)

Pallet height

10.7” (27cm)

Pallet weight

30lbs (13.6kg)

Nesting height per pallet

approx. +2” (+ 5cm)

Forklift openings

6.28” x 4.70” (16cm x 12cm)

Center dividing wall

17.72” (45cm)

Stacked Drum and Pallet height

43.75” (111cm)

Color

Black (Other colors available upon special request)

FURTHER INFORMATION

Approximately 1,248 empty, nested pallets can fill a standard 53’ trailer.

Approximately 748 empty, nested pallets fill a 40’ high storage cube container.
